Compact SOLAX specializing in small size and low power consumption

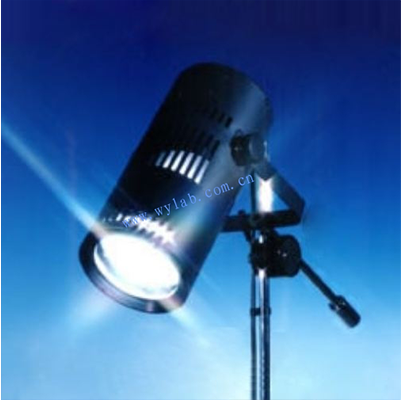

Artificial solar lighting The SOLAX 100W series is a compact artificial solar lighting developed in response to the demand for small size and low power consumption. You can use SOLAX performance at low cost while keeping basic performance.

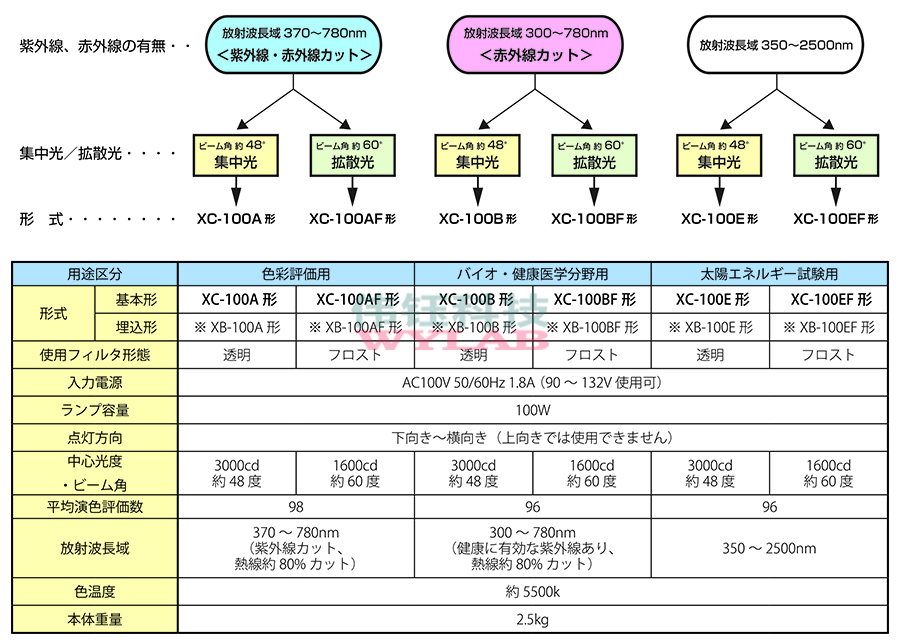

specification
Since the energy of ultraviolet rays and infrared rays is adjusted by the filter according to the application category, you can select the specifications according to the customer's application from the necessary conditions such as the presence or absence of ultraviolet rays and infrared rays, the degree of diffusion of light rays, and the strength.
Precautions for use
1、The energy of ultraviolet rays and infrared rays is adjusted by a filter according to the application category.
2、The heat rays of models other than E and EF are cut by about 80%.
3、Be sure to read the instruction manual before using.
4、Upon request, we can also manufacture a condensing type super spot type (*) that can irradiate 1sun (1000W / m2) or 100000Lx. (XC-100ASS, XC-100AFSS, XC-100BSS, XC-100BFSS, XC-100ESS, XC-100EFSS)
5、Mounting brackets and spare parts are optional. Please refer to the option section below for details.
6、The combination model number of the mounting bracket and the lighting is set. Please contact our sales department for details.
7、For the embedded type, please strictly observe the precautions for construction.
8、The operating environment is indoors, and the operating temperature range is -10 to + 30 ° C.
9、The color temperature has an error of ± 10%.

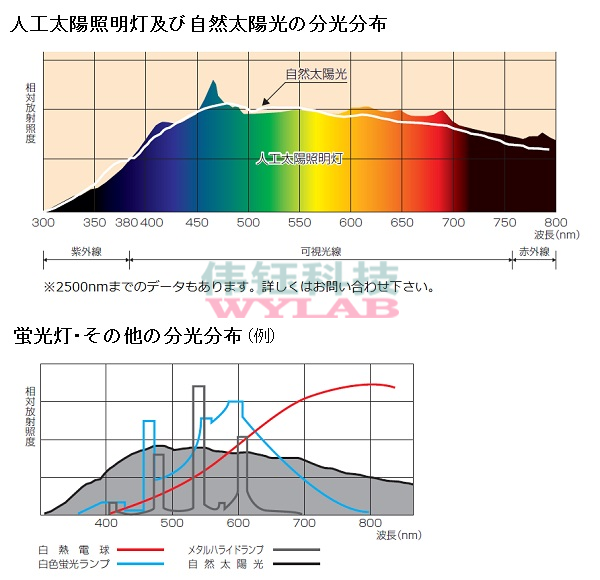

Spectral distribution

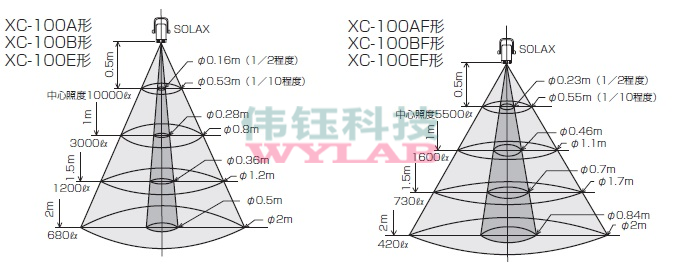

Light distribution
External dimensions
option
|
|
|
|
|
||||
|
Tripod stand |
Tripod stand |
Upright stand type |
Upright standtype with casters |
||||
|
Body XC-100 * |
Body XC-100 * |
Main unit XC-100 * |
Body XC-100 * |
|
|
|
|
|
||||
|
Flange sealing type |
Duct plug type |
Hook ceiling |
lamp |
||||
|
Body XC-100 * |
Body XC-100 * |
Body XC-100 * |
SET-140F |
|
|
|
||
|
filter |
Power cord |
||
|
A, AF, B, BF, E, EF |
CSW-3 |
In the * mark, enter the type symbol such as the filter type specified by the customer (eg, XC-100A, SOLAX-1A).
Optional specifications
Mounting bracket
|
name |
Tripod stand |
Upright stand |
With casters Upright stand |
|
|
For 1 light |
For 2 lights |
|||
|
format |
ST-CO3A |
ST-CO3B |
ST-1500C |
STC-1400K |
|
Size (mm) |
Overall height 1130-2750 |
Overall height 1500 |
Overall height 1400 |
|
|
Base diameter φ300 |
caster interval 400 x 400 |
|||
|
weight (kg) |
3.2 3.2 |
3.9 |
10.3 |
4.5 4.5 |
|
name |
Flange ceiling |
Duct plug |
Hook ceiling |
|
|
format |
FC-30 |
DP-30 |
DP-175 |
HC-300 |
|
Size (mm) |
Pipe length 30 |
Pipe length 30 |
Pipe length 175 |
Cord length 300 |
|
Flange diameter φ100 |
||||
|
weight (kg) |
0.25 |
0.19 |
0.26 |
0.13 |
Mounting bracket
|
name |
lamp |
Filter with frame |
Power cord |
|
format |
SET-140F |
(1) A-3P (2) AF-3P (3) B-3P (4) BF-3P (5) E-3P (6) EF-3P |
CSW-3 |
|
specification |
100W Lifespan 2000H (continuous lighting) |
|
Length 3m With switch |
[Note] Some filters are single without a frame.
