OTP programming light source series

G4C burning light source (4 color temperature)

Product number：WY-290224-G4C
Brand：WYLAB
Product description: Luminance surface uniformity ≥95%, CRI≥98%, LED life ≥25000 hours, color temperature can be fine-tuned, automatic calibration, PC setting; The high-definition four-color temperature OTP
INQUIRY

product description:

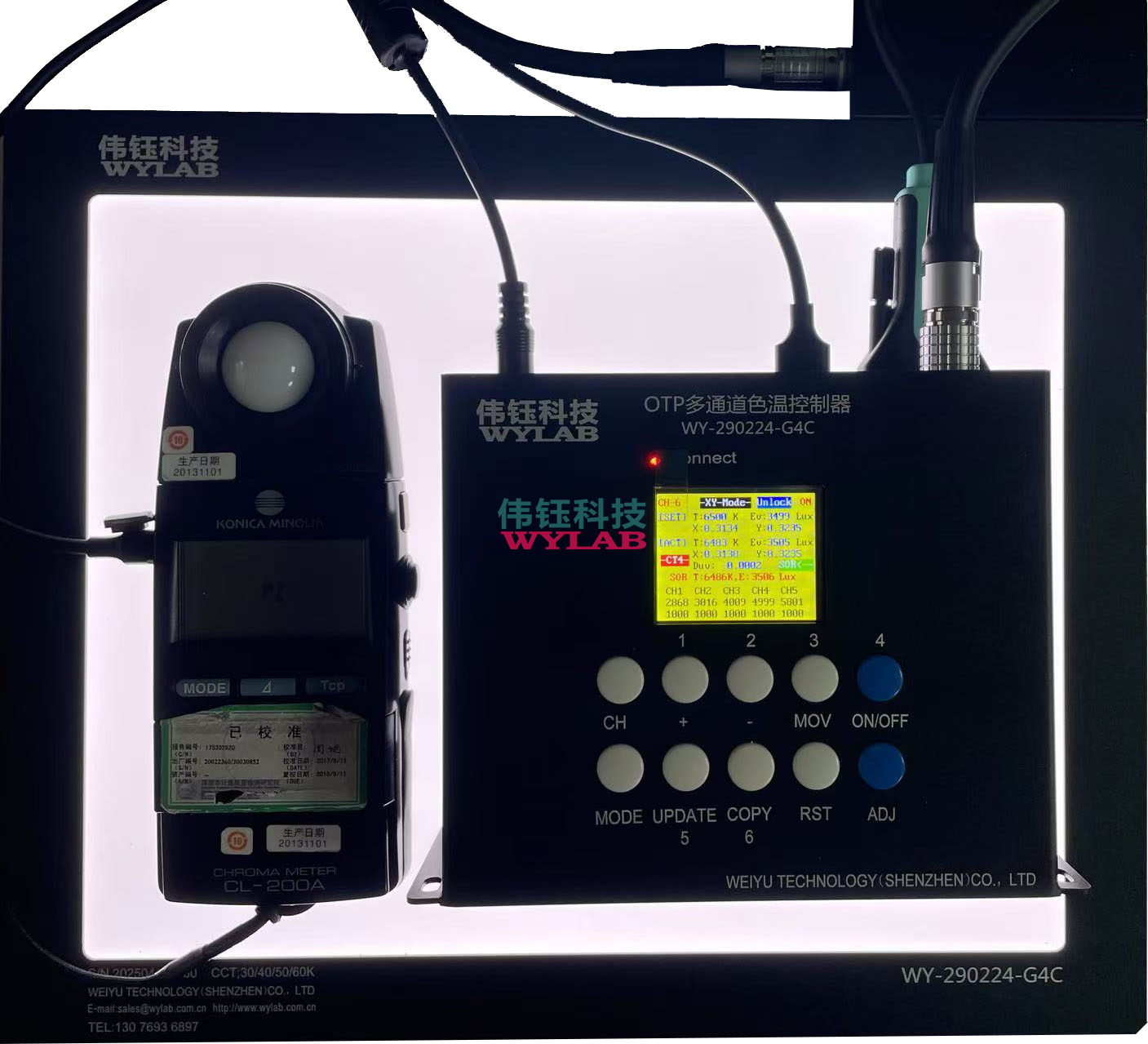

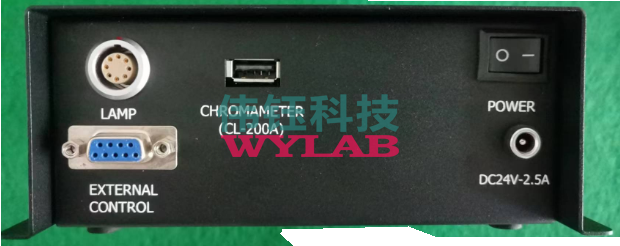

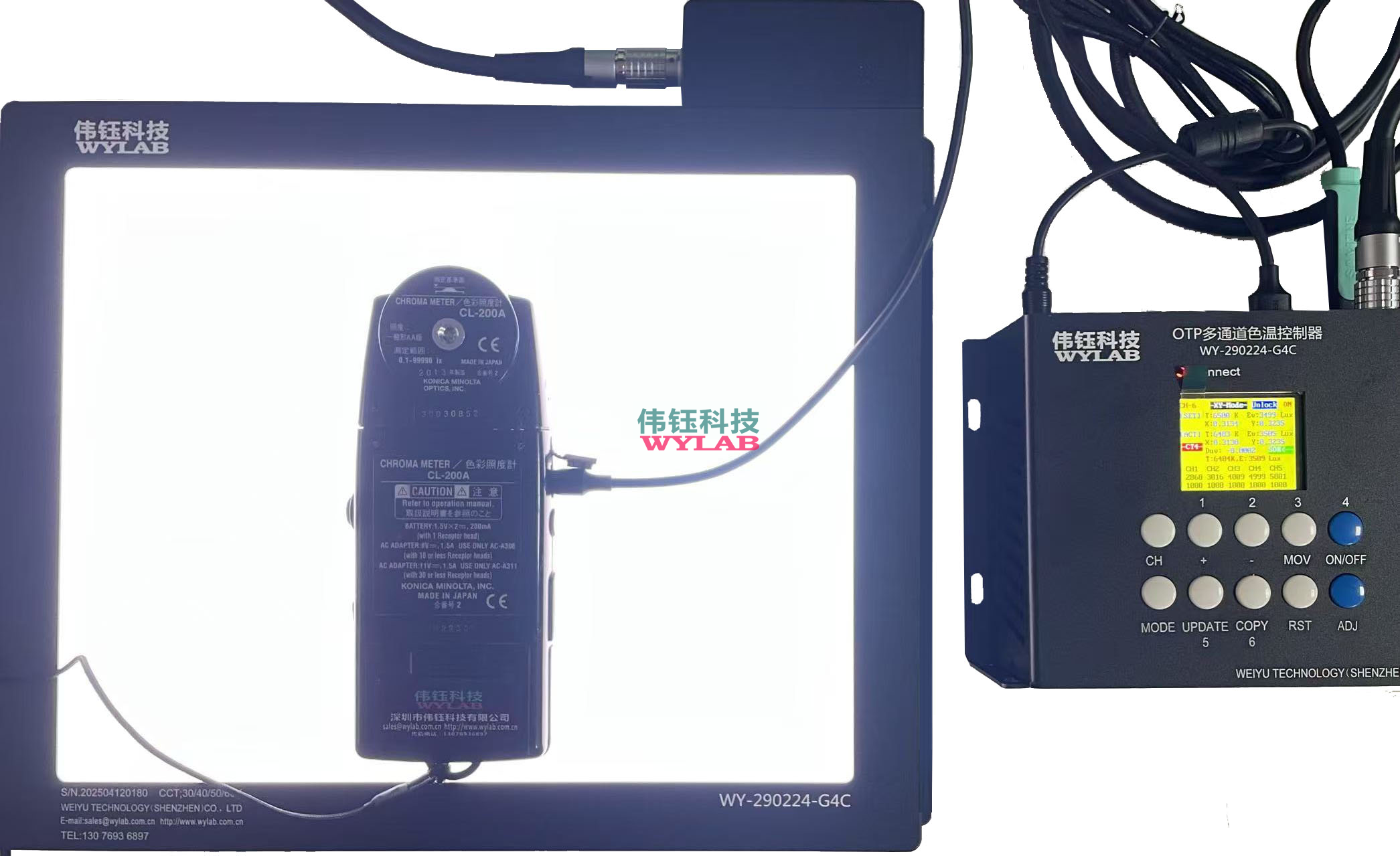

The high-definition four-color temperature OTP light source (G4C) is a high-end intelligent burning light source developed by our company for camera module testing and image acquisition. Adopt a variety of standard high CRI LED lamp bead integration. The spectrum and color coordinate values of the light source are customized according to international general standards, which are basically consistent with the data of the imported burning light source in South Korea. The light source is divided into two parts: one part is the standard light source board, and the other part is the digital controller.

Features:

1. Automatically correct all lighting technical parameters of the light source;

2. Self-learning function, which can track and copy all lighting parameters of the sample light source;

3. Independently set the illumination and XY coordinates of the light source;

4. High dimming level (adjustable from 0 to 13000 levels), high adjustment accuracy and fast response speed;

5. High uniformity, good consistency and good stability;

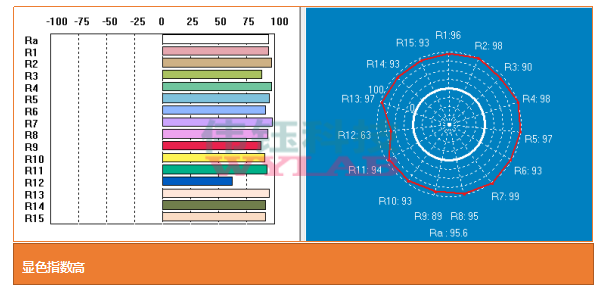

6. High color rendering index and good color reproduction;

7. The parameters of imported OTP light source are basically the same;

Application range:

1. Application of camera module testing equipment

2. Image acquisition

technical parameter:

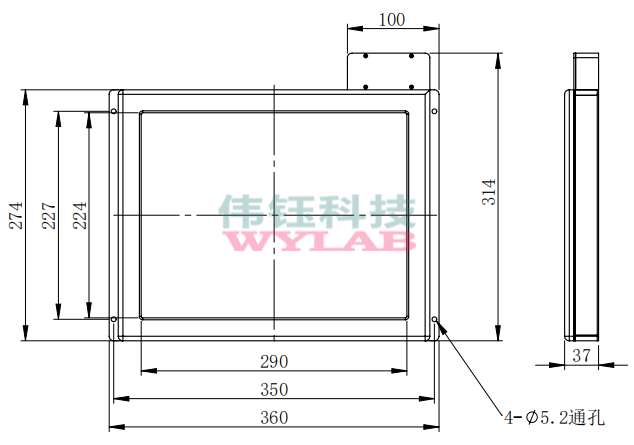

Dimensions of the light source board:	36227637mm
Light source board light-emitting surface:	290*224mm
Illumination adjustable range:	0-3000LUX

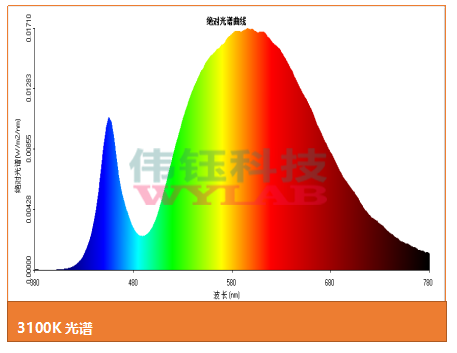

Color temperature adjustable range:	3100K±200K adjustable

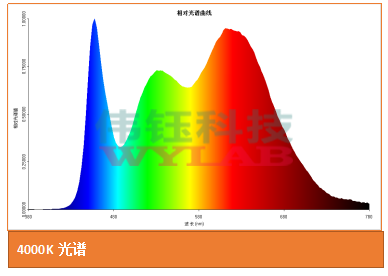

	4000K±200K adjustable

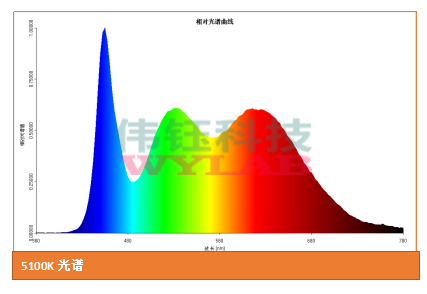

	5100K±200K adjustable

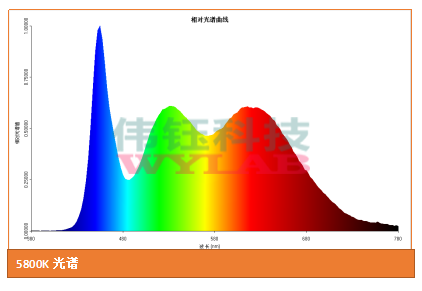

	5800K±200K adjustable
Color temperature error value:	3100K±10K
	4000K±15K
	5100K±20K
	5800K±30K
Color coordinate error value range:	X: ±0.003, Y: within ±0.003
Color coordinate error value range after self-learning:	X: ±0.001, Y: within ±0.001
Independently set the color coordinate error value range:	X: ±0.001, Y: within ±0.001

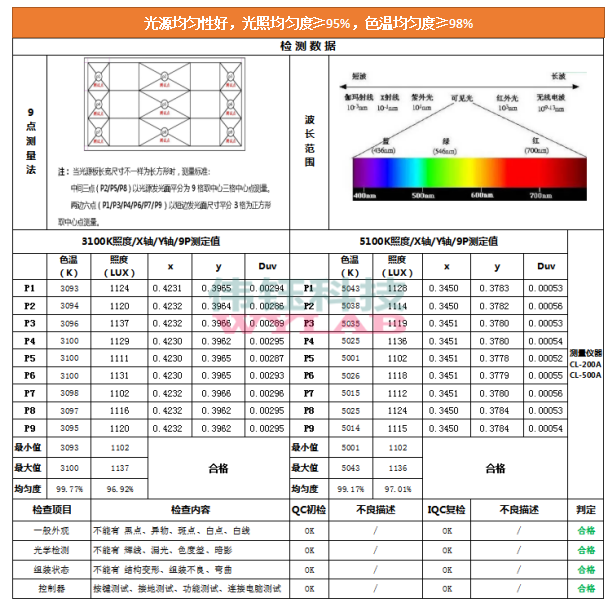

Light source uniformity:	above 95
Input voltage:	12V DC
Input Current:	0.5A
Light source standby power consumption:	0.5W
Power-on power consumption of the light source:	6W
LED light source life:	20000~30000 hours
After-sale service:	24 hours after-sales service, one year free warranty
